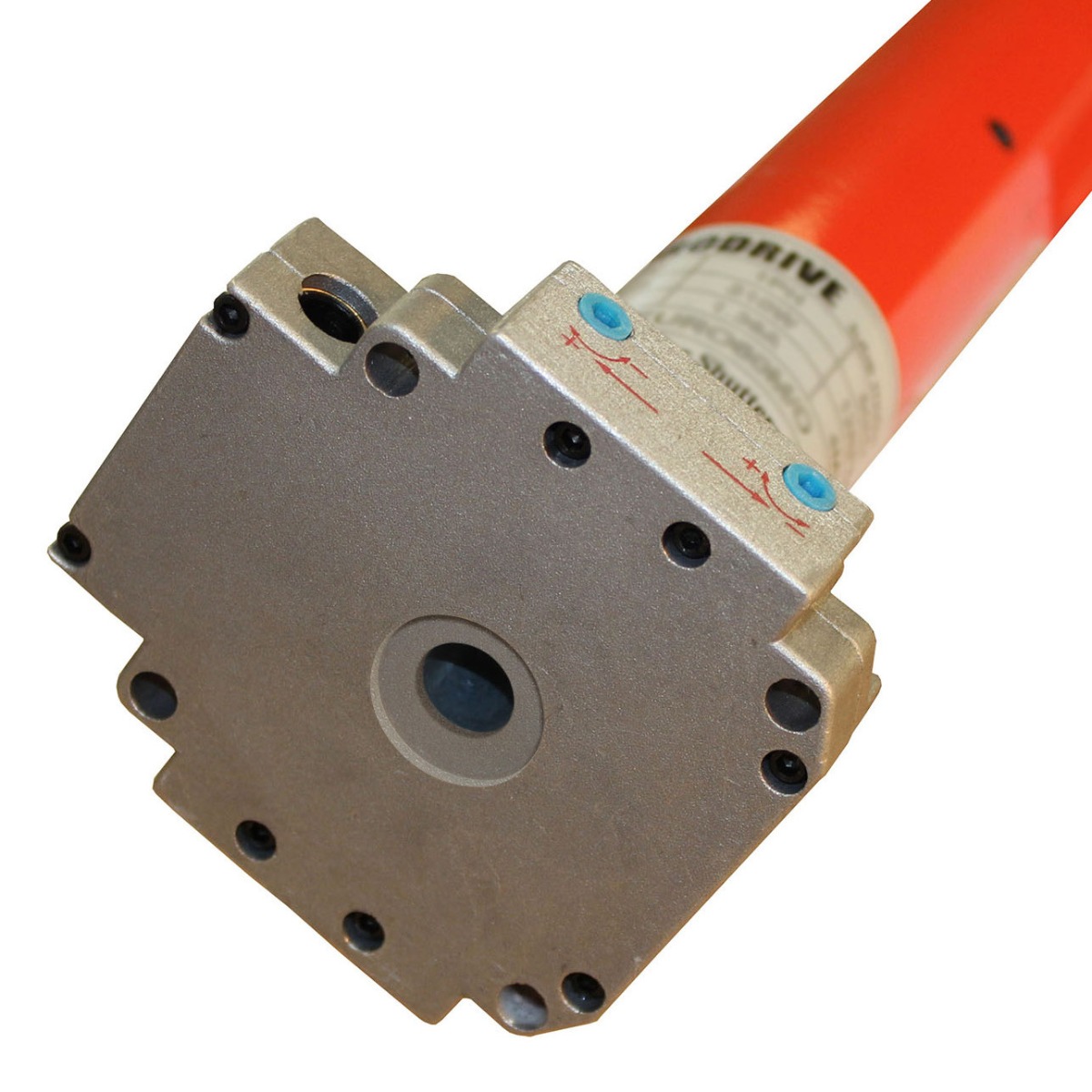

DRS UK Tubular Motors 130nm

This 130Nm Eurodrive/DRS tubular motor is available with multiple adaptor sizes to suit either 60mm or 70mm octagonal barrels or the SWS 4" barrel commonly found on Seceuroglide roller garage doors. Additional adaptors available - see below.

E130M/O Eurodrive Tubular Motor Features:

• Quiet opening and closing operation.
• Manual Override.
• Simple installation supplied with fitting instructions.
• Supplied with limit adjuster tool.
• Range of tubular motor adaptors available including the 70mm octagonal and SWS 4" adaptors.
• Additional adaptors available on request.
• Designed for domestic use roller shutter garage doors.


Technical Details:

• Suitable for double width domestic roller shutter garage doors with 77mm lath or slats.
• Approximate lift capacity of 195kg.
• Manual override.
• 130Nm of torque.
• 2.09 Amps.
• 460 Watts.
• 12 RPM.
• 26 Limit turns.


Dimensions

Barrell diameter - 59mm.
Barrell length - 675mm.
