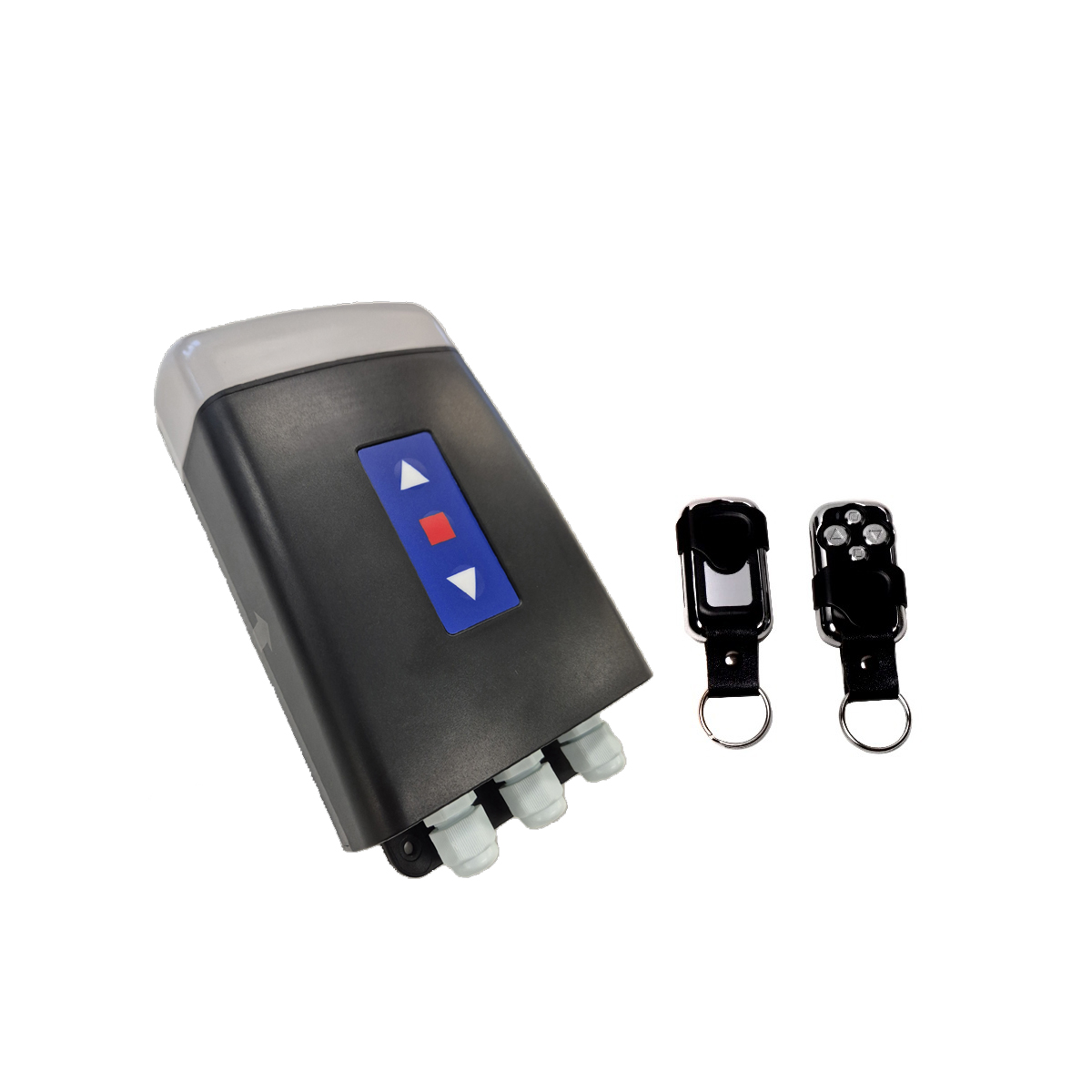

EUROKITEDGE Hardwired Safety Edge System
Eurokit Universal Roller Door Control Unit with Hardwired Safety Edge.
Includes two remotes.
In stock
SKU
DRSEUROKITEDGE
Log in to see pricing and purchase.
Description / EUROKITEDGE Hardwired Safety Edge System
- Tube motor radio remote control unit operating on 433.92Mhz
- Complete with 2 x EUROFOB pre-programmed transmitters
- LED Lighting and courtesy light output Hardwired optical safety edge input
- Programmable motor run time setting option
- EUROFOBs fitted with CR2032 batteries for longer life
- 60-transmitter programmable memory function
- Easy and secure mounting c/w with fixing screws
- Impulse and Deadman open and close options
- Panel-mounted membrane up, down & stop pushbuttons
- Stop & Return safety feature for use with photocell and safety edge
- Spacious cable area c/w removable terminals
- Red PCB so that the panel can be easily identified
- Fitted with a 1.5m pre-wired power cable and a moulded UK Plug
- Stop circuit for safety brake microswitches
- Low voltage control inputs for key switches, rocker switches, etc
- Suitable for use with all 230v/50Hz tube motors up to 550nm
- UKCA & CE compliant
More Information
| Category | Automation Accessories |
|---|---|
| Manufacturer | DRS |
