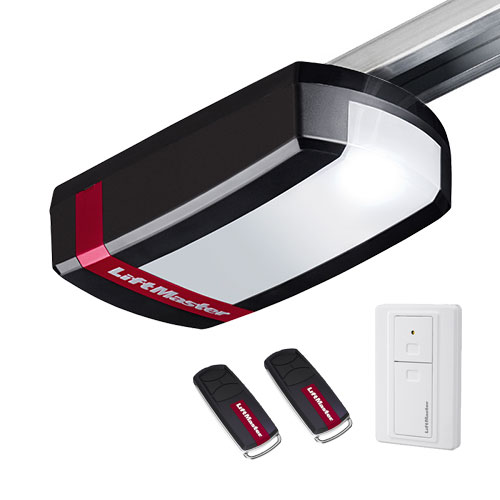

Liftmaster LM100 EVF Operator With 1 Piece 3m Belt Rail
THE FAST GARAGE DOOR OPENER WITH MORE POWER FOR LARGER SIZE DOORS
Super-quiet and fast-running garage door opener including two multi-frequency transmitters, wireless radio wall control and a modern, powerful LED lighting system. For doors with door weights up to 150 kg. Compatible with MyQ smart-home technology.
Supplied with:
- 8025CR5 1pc Belt Rail 3187mm (LIFTRAIL3187)
- Liftmaster Wireless Wall Button (LIFT128EV)
- 2x Remotes
In stock
Log in to see pricing and purchase.
Description / Liftmaster LM100 EVF Operator With 1 Piece 3m Belt Rail
Stay connected with myQ
With myQ, you can monitor and control your garage door, using your smartphone, tablet or computer from wherever you happen to be.
Smart Radio Technology
Evolution operators are equipped with the best reliable radio that is a bi-directional radio.
Strength in silence
The quiet operation of our garage door openers is unparalleled.
High running speed
The running speed with a maximum of 200 mm/s is an important safety and comfort feature.
Up to 8 years motor warranty
The long-time warranty demonstrates that LiftMaster provides premium quality products.
Economic and environmentally friendly
The extremely low standby energy consumption is good for the environment and your pocket.
Long-lasting LEDs
Immediate brightness, low CO2 emissions and avoidance of heavy metals and mercury.
Quickly installed
Simple installation with standard tools.
| Voltage IN | 230-240 V, 50/60 Hz |
|---|---|
| Motor voltage | 24V DC |
| Max pull force | 1000 N |
| Stand-by power | 0,8 W |
| Drive type | Belt |
| Gate height | Adjustable up to 2,25 m or up to 4 m with appropriate extension |
| Speed | — |
| Lighting | LED turns on with activation, turns off 2.5 minutes after operation |
| Obstacle detection | Automatic |
| Force setting | Automatic |
| Over voltage protection | Transformer overload protection |
| Operating temperature | -30°C bis +55°C |
| Limit Switch | Electronic |
|---|---|
| Max door area | — |
| Max door width | 5,75 m |
| Max door weight | 150 Kg |
| Headroom required | min. 35 mm |
| Weight | 12 Kg |
| Memory registers | 180 |
| Radio | 433 MHz + 868 MHz |
| Further features | Soft-start and soft-stop, automatic close |
| MyQ smartphone combatible | Yes (optional Internet Gateway 828EV required) |
| Safety class | TÜV-tested to meet EN12453. For doors up to 150 kg |
| Motor warranty | 8 Years* |
More Information
| Category | Operators |
|---|---|
| Manufacturer | Liftmaster |
