Schartec 12-24v Mini Radio Receiver Set 433 MHz
With its single channel, it can control a gate opener. The programming button for the remote controls is located on the outside of the receiver, eliminating the need to open the housing when programming new remotes.
In stock
Description / Schartec 12-24v Mini Radio Receiver Set 433 MHz
With its single channel, it can control a gate opener. The programming button for the remote controls is located on the outside of the receiver, eliminating the need to open the housing when programming new remotes. Using 433 MHz and rolling code encryption, signal transmission is highly secure and cannot be intercepted, as the code changes constantly. Thanks to its 48 cm connection cable, the universal receiver can be connected immediately. The Schartec 1-channel mini radio receiver impresses with its very compact design of 57 x 34 x 20 mm (L x W x H). An integrated two-colour LED (green/red) indicates the status of the programmed remote controls.
The single-channel transmitter has one button and can therefore operate a gate opener. The high-quality construction with a metal frame and leather strap with a keyring for attaching to a keychain is just as impressive as the long range of 50 meters. The radio receiver can store up to 500 remote controls, making it ideal for private underground garages or parking garages.
Function:
- Very easy to use (only two steps)
- Rolling code encryption (very secure)
- 1-channel (1 relay output)
- Mini design 57*34*20 mm (L*W*H)
- Long range (up to 50 m/ depending on local conditions)
- Resistant to radio interference
- 2-color LED for function check of the hand transmitters
- External programming button
- Including 48 cm connection cable
- Handheld transmitter with attachment option for key ring
Exclusively compatible with Schartec hand-held transmitters:
- ST201001
- ST201010
ADVANTAGES
- Compact – takes up little space
- 2-step programming
- LED function indicator
TECHNICAL DATA
Frequency 433.92 MHz (rolling code)
Buttons 1
Channels radio receiver 1
Reach Approx. 50 m
Power supply 12-24 V AC/DC
Memory up to 500 codes
Operating temperature -20°C/+60°C
Weight receiver 47 g
Weight of handheld transmitter 45 g
Receiver dimensions 57*34*20 mm (L*W*H)
Dimensions of a 1 button transmitter 65*37.6*14.5 mm (L*W*H)
Battery-powered remote control 3V/ CR2032
CONTENTS

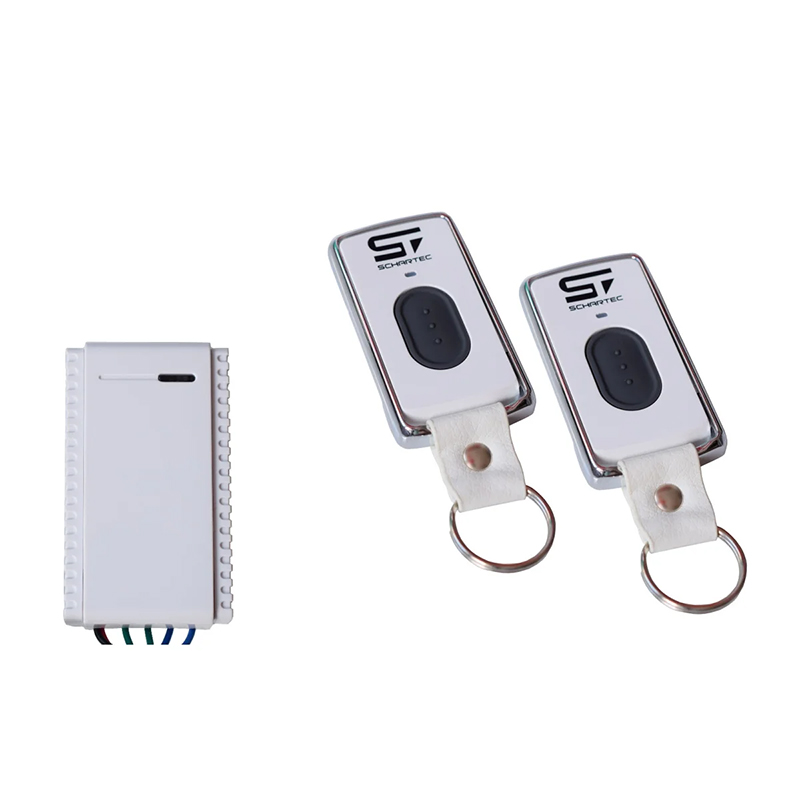

- Schartec Universal Radio Receiver 433 MHz
- 2 pcs. 1-channel hand-held transmitters incl. battery
- Instructions for easy connection and programming
More Information
| Manufacturer | Schartec |
|---|
