Schartec 12-24v Universal Radio Receiver 433MHz

Our radio receiver is universal and therefore compatible with any garage door opener, swing gate opener, or sliding gate opener. The Schartec radio receiver kit is perfect for upgrading your old opener with new remote controls or replacing a defective radio receiver. The radio system is also very secure thanks to rolling code encryption (433.92 MHz).

Programming the handheld transmitters takes only a few seconds using the programming button. Connecting the receiver is also quick and easy. The Schartec radio receiver can program up to 400 handheld transmitters. Additional transmitters can be purchased individually in our shop.

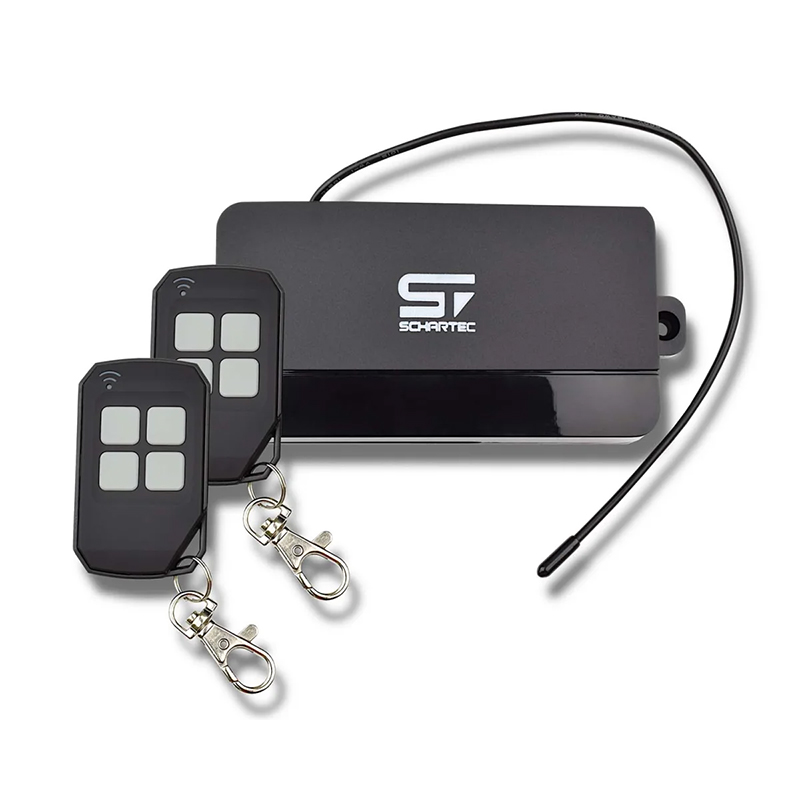

Coated remote controls with key fob.

The included remote controls feature a modern design and a rubberized surface, making them more shock-resistant and break-resistant than conventional remotes. The buttons are highly pressure-resistant and won't trigger with the slightest touch. The transmission indicator flashes blue when pressed, providing visual feedback. Naturally, you can also attach the remote to your keyring.

Characteristics:

Rolling code (very secure)
2-channel (2 relay outputs)
Long range (up to 50 m/ depending on local conditions)
Resistant to radio interference
High-quality housing with sliding connection cover (no screwing required)
Handheld transmitter with attachment option for key ring
Handheld transmitter is shock-resistant and break-resistant thanks to its coated surface.

Compatible with Schartec radio transmitters:

YET2129 remote control
T11 remote control
T10 remote control
CR4 hand transmitter
SKP-3 wireless keypad

Also compatible with hand-held transmitters from:

Tormatic (433 MHz)
Novoferm (433 MHz)
Normstahl (433 MHz)
BFT (433 MHz)
Came (433 MHz)
Nice (433 MHz)
Beninca (433 MHz)
dtm (433 MHz)
EcoStar (433 MHz)

The Schartec universal radio receiver can be connected to any gate operator. This allows you to control various operators, including those from other manufacturers, with just one Schartec remote control. See above for a list of Schartec remote controls compatible with the radio receiver.

TECHNICAL DATA

Frequency 433.92 MHz (rolling code)

Channels of the handheld transmitters 4 each

Channels radio receiver 2

Reach approx. 50 m

Power supply 12-24 V AC/DC

Memory 400 codes

Operating temperature -20°C/+60°C

Dimensions of radio receiver 140*68*26 mm (L*W*D)

Dimensions of hand transmitter 64*38*12 mm (L*W*D)

Radio receiver model ST301020

Handheld transmitter model ST301018 (433MHz rolling code)
