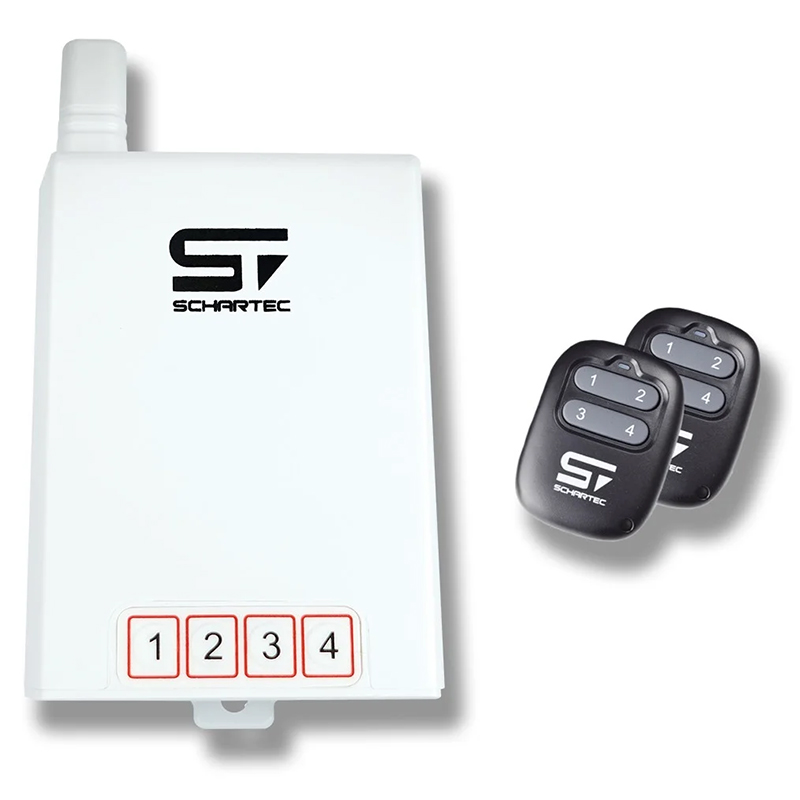

Schartec 4-Channel 12-24v Universal Radio Receiver Set
Our radio receiver is universal and therefore suitable for any electric gate opener. Whether garage door or driveway gate, with the Schartec 4-channel radio receiver kit you can retrofit any type of gate opener. The Schartec radio receiver set is particularly suitable for operating multiple gate openers with a single remote control.
In stock
Description / Schartec 4-Channel 12-24v Universal Radio Receiver Set
Our radio receiver is universal and therefore suitable for any electric gate opener. Whether garage door or driveway gate, with the Schartec 4-channel radio receiver kit you can retrofit any type of gate opener. The Schartec radio receiver set is particularly suitable for operating multiple gate openers with a single remote control. The 4 channels allow you to connect to four different gate openers from different manufacturers to the radio receiver. The included 4-channel remote controls then allow you to control up to four connected gate openers with one remote. No more carrying multiple, different remote controls in your car.
433 MHz radio receiver for garage door or gate - easy to retrofit
The universal radio receiver kit is ideal for equipping your existing drive with new remote controls or replacing a defective radio receiver. The radio system is also very secure thanks to rolling code encryption. Operating at a frequency of 433.92 MHz, the signal is stable and ensures good range for the transmitters.
Easy installation - ready to use in no time.
The radio receiver is powered by a 12-24V AC/DC power supply, which most gate openers already provide. Simply connect the desired channel to the gate opener's push-button input using two wires, and the installation is complete. Programming the remote controls takes only a few seconds using the programming button. Additional remote controls are available in our shop.
Function:
- 4-channel (4 relay outputs)
- Optional pulse mode or hold contact per channel
- Integrated buttons for each channel = channel can be operated directly on the radio receiver without a handheld transmitter
- Very simple operation (only two steps)
- Rolling code encryption (very secure)
- Long range (up to 50 m/ depending on local conditions)
- Resistant to radio interference
- Handheld transmitter with eyelet for attaching to a key ring
Exclusively compatible with Schartec hand-held transmitters:
- ST201001
- ST201010
IMPORTANT: If you have two or more openers connected to the radio receiver, it is not possible to use one remote control for channel 1 only and another for channel 2 only. Each programmed remote control is always capable of controlling all four channels (button 1 = channel 1 / button 2 = channel 2 / button 3 = channel 3 / button 4 = channel 4). Therefore, this radio receiver is not suitable if you intend to rent out your second garage, as the tenant would then also have access to your garage.
ADVANTAGES
- Control up to 4 different drives
- 2 4-channel handheld transmitters included
- Can also be operated without a remote control
TECHNICAL DATA
Power supply: 12-24 V AC/DC
Switching capacity: 3A / 250V AC (per channel)
Frequency: 433.92 MHz Rolling Code
Maximum memory: 30 hand-held transmitters
Channels: 4
Operating temperature: -20°C to +60°C
Protection class: IP54
Dimensions: 135 x 78 x 29 mm (L x W x H)
Model number: R5402
Article number: ST201013
Contents
- 4-channel universal radio receiver 433 MHz
- 2 hand-held transmitters including battery
- Mounting screws and dowels
- Instructions for easy connection and programming
More Information
| Manufacturer | Schartec |
|---|
