Schartec Move 1000n Speed
New to Series 3:
- Adjustable ventilation setting – previously only possible with the Prime model
- Stronger timing belt with 6 steel tendons – other manufacturers often only use 4–5 steel tendons.
- Hidden display – ensures an elegant design and prevents unauthorized adjustment of the drive.
- Handheld transmitter with soft-touch keypad and improved pressure point – prevents accidental activation of the transmitter in a pocket
- Reinforced ceiling hangers (folded) – more stable suspension of the rail
- TÜV GS certified – highest level of safety and quality
In stock
Description / Schartec Move 1000n Speed

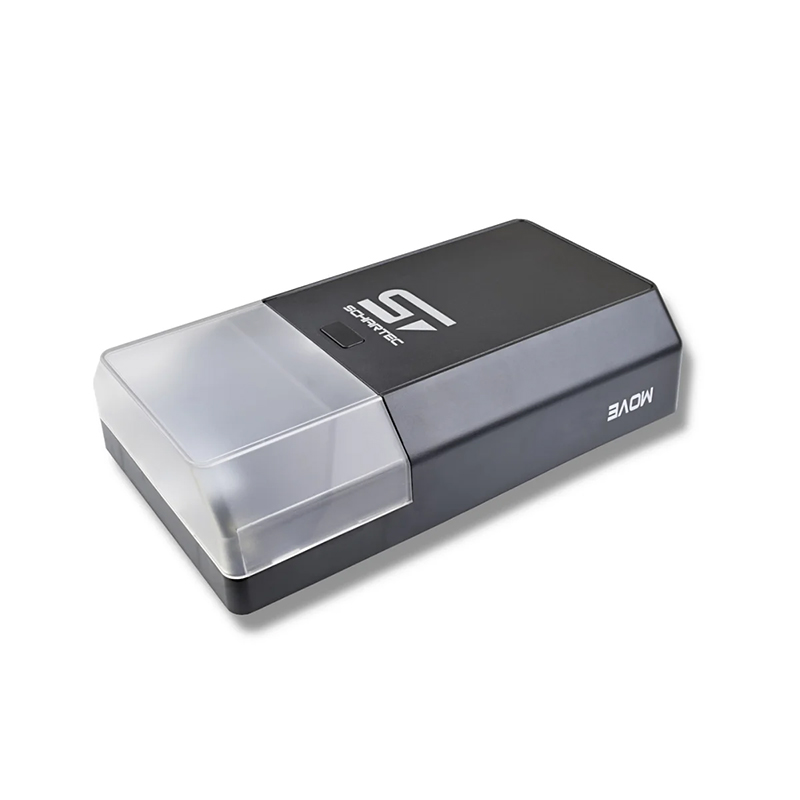

Schartec Move 1000 Speed Series 3 garage door opener - Head Only - Boom sold separately.
Ready-to-install complete set for garage doors up to 14 m² door area.
New to Series 3:
- Adjustable ventilation setting – previously only possible with the Prime model
- Stronger timing belt with 6 steel tendons – other manufacturers often only use 4–5 steel tendons.
- Hidden display – ensures an elegant design and prevents unauthorized adjustment of the drive.
- Handheld transmitter with soft-touch keypad and improved pressure point – prevents accidental activation of the transmitter in a pocket
- Reinforced ceiling hangers (folded) – more stable suspension of the rail
- TÜV GS certified – highest level of safety and quality
Advantages at a glance:
- Turbo speed – up to 200 mm/second
- TÜV GS certified safety and quality
- Energy-efficient LED lighting
- Soft start and soft stop (protects the transmission)
- Adjustable ventilation setting (ideal for insulated sectional doors)
- Increased safety thanks to automatic obstacle detection
- Automatic feed adjustable (in conjunction with light barrier)
- Maintenance-free timing belt with 6 steel tendons – competitors usually only use 4–5 steel tendons.
- Increased burglary protection thanks to delay protection
- Radio receiver with rolling code encryption
- Smooth running
- Solid steel base plate
- Folded rail hangers
- Powerful engine
- Hidden Display (not accessible from the outside)
- Transformer with temperature detection
- Electronic limit switch setting
- Handheld transmitter with soft-touch keypad and improved pressure point
- Easy assembly and programming
- Large display for programming (most drives in this price range usually do not have a display)
- Extremely durable motor, also used by other well-known manufacturers (has passed endurance tests up to 20,000 gate cycles)
- 3-year manufacturer's warranty (see warranty conditions in the manual)
Connection options:
- Light Barrier
- Warning Light
- Push Button
- Wicket Door Contact
Select the drive rail to match the gate height as shown in the table:
Side Hinged Sectional door
Up to 2400 mm height K-rail K-rail
Up to 2600 mm height K-rail M-rail
Up to 2750 mm height M-rail M-rail
Up to 2950 mm height M-rail L-rail
Up to 3250 mm height L-rail L-rail
Up to 3450 mm height L-rail
Important note: This garage door opener is intended exclusively for impulse operation of spring-balanced sectional and up-and-over garage doors in private/non-commercial settings. Door systems located in public areas and equipped only with a safety device, such as force limiting, may only be operated under supervision. The garage door opener is designed for operation in dry rooms.
ADVANTAGES
- Extremely robust & safe
- 3-year warranty
- TÜV GS certified
TECHNICAL DATA
Power supply 220-240, 50-60 V, Hz
Maximum tensile force 1000 N
Max. gate area 14 m²
Max. goal weight 100 kg
Max. door height sectional door 2400 mm (K-rail)
Max. gate height swing gate 2600 mm (K-rail)
Max. gate width 5500 mm
Max. gate width wooden swing gates 5000 mm
Drive rail Belt
Opening speed 200 mm/sec
Power consumption 245 W
Power consumption in standby mode Approx. 2.5 W
End position setting Electrically
Radio frequency 433.92 MHz
Coding Rolling Code
Storage Capacity 20 different codes
Connection warning light Included
Operating temperature -20°C to +40°C
Protection class 20 IP
Total length of drive unit with K-rail 3155 mm
Total length of drive unit with M-rail 3655 mm
Total length of drive unit with L-rail 4155 mm
Contents:
- Garage door drive Move 1000 Speed Series 3
- 1-piece 3m K-Boom with toothed belt
- 2 pcs. 4-channel handheld transmitter (black)
- Mounting material
- Instructions
More Information
| Manufacturer | Schartec |
|---|
