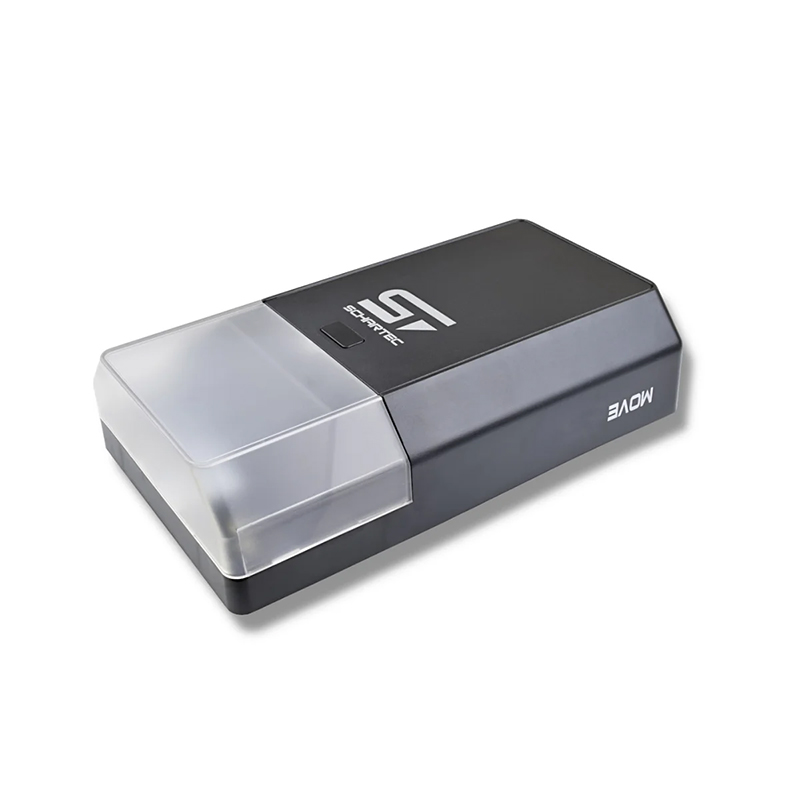

Schartec Move 1200n Speed
New to Series 3:
- Adjustable ventilation setting – previously only possible with the Prime model
- Stronger timing belt with 6 steel tendons – other manufacturers often only use 4-5 steel tendons.
- Hidden display – ensures an elegant design and prevents unauthorized adjustment of the drive.
- Handheld transmitter with soft-touch keypad and improved pressure point – prevents accidental activation of the transmitter in a pocket
- Reinforced ceiling hangers (folded) – more stable suspension of the rail
- TÜV GS certified – highest level of safety and quality
In stock
Description / Schartec Move 1200n Speed
Schartec Move 1200 Series 3 garage door opener - incl. 2 remote controls - Head Only - Boom sold separately.
Ready-to-install complete set for garage doors up to 16 m² door area
New to Series 3:
- Adjustable ventilation setting – previously only possible with the Prime model
- Stronger timing belt with 6 steel tendons – other manufacturers often only use 4-5 steel tendons.
- Hidden display – ensures an elegant design and prevents unauthorized adjustment of the drive.
- Handheld transmitter with soft-touch keypad and improved pressure point – prevents accidental activation of the transmitter in a pocket
- Reinforced ceiling hangers (folded) – more stable suspension of the rail
- TÜV GS certified – highest level of safety and quality
Advantages:
- TÜV GS certified safety and quality
- Energy-efficient LED lighting
- Soft start and soft stop (protects the transmission)
- Adjustable ventilation setting (ideal for insulated sectional doors)
- Increased safety thanks to automatic obstacle detection
- Automatic feed adjustable (in conjunction with light barrier)
- Maintenance-free timing belt with 6 steel tendons
- Increased burglary protection thanks to delay protection
- Radio receiver with rolling code encryption
- Smooth running
- Solid steel base plate
- Folded rail hangers
- Powerful engine
- Hidden Display (not accessible from the outside)
- Transformer with temperature detection
- Electronic limit switch setting
- Handheld transmitter with soft-touch keypad and improved pressure point
- Easy assembly and programming
- Large display for programming (most drives in this price range usually do not have a display)
- Extremely durable motor, also used by other well-known manufacturers (has passed endurance tests up to 20,000 gate cycles)
- 3-year manufacturer's warranty (see warranty conditions in the manual)
Connection options:
- Light Barrier
- Warning Light
- Push Button
- Wicket Door Contact
Side Hinged Sectional door
Up to 2400 mm height K-Boom K- Boom
Up to 2600 mm height K- Boom M- Boom
Up to 2750 mm height M-Boom M- Boom
Up to 2950 mm height M-Boom L- Boom
Up to 3250 mm height L- Boom L- Boom
Up to 3450 mm height L- Boom -
Important note: This garage door opener is intended exclusively for impulse operation of spring-balanced sectional and up-and-over garage doors in private/non-commercial settings. Door systems located in public areas and equipped only with a safety device, such as force limiting, may only be operated under supervision. The garage door opener is designed for operation in dry rooms.
ADVANTAGES
- Extremely robust & safe
- 3-year warranty
- Continuous spare parts supply
TECHNICAL DATA
Power Supply 220-240 V, 50-60 Hz
Maximum tensile force 1200 N
Max. gate area 16 m²
Max. weight 160 kg
Max. door height sectional door Depending on the rail
Max. gate height swing gate Depending on the rail
Max. gate width 6000 mm
Max. gate width wooden swing gates 5000 mm
Drive Rail Belt
Opening speed 140 mm/sec
Power consumption 260 W
Power consumption in standby mode Approx. 2.5 W
End position setting Electrically
Radio frequency 433.92 MHz
Coding Rolling Code
Storage capacity 20 different codes
Connection warning light Included
Operating temperature -20°C to +40°C
Protection class 20 IP
Total length of drive unit with K-rail 3155 mm
Total length of drive unit with M-rail 3655 mm
Total length of drive unit with L-rail 4155 mm
CONTENTS:
- Garage door opener Move 1200 Series 3
- 1-piece 3m K-Boom with toothed belt
- 2 pcs. 4-channel handheld transmitter (black)
- Mounting material
- Instructions
More Information
| Manufacturer | Schartec |
|---|
