Schartec Move Automation Kit
New to Series 3:
- Adjustable ventilation setting - previously only possible with the Prime model
- Stronger timing belt with 6 steel tendons - other manufacturers often only use 4-5 steel tendons.
- Hidden display – resulting in an elegant design and preventing unauthorized adjustment of the drive.
- Handheld transmitter with soft-touch keypad and improved pressure point - preventing accidental activation of the transmitter when in a pocket.
- Reinforced ceiling hangers (folded) - resulting in a more stable suspension of the rail.
- TÜV GS certified - highest level of safety and quality
- Ready-to-install complete set for garage doors up to 10 m² door area.
In stock
SKU
ST-MOVE
Description / Schartec Move Automation Kit

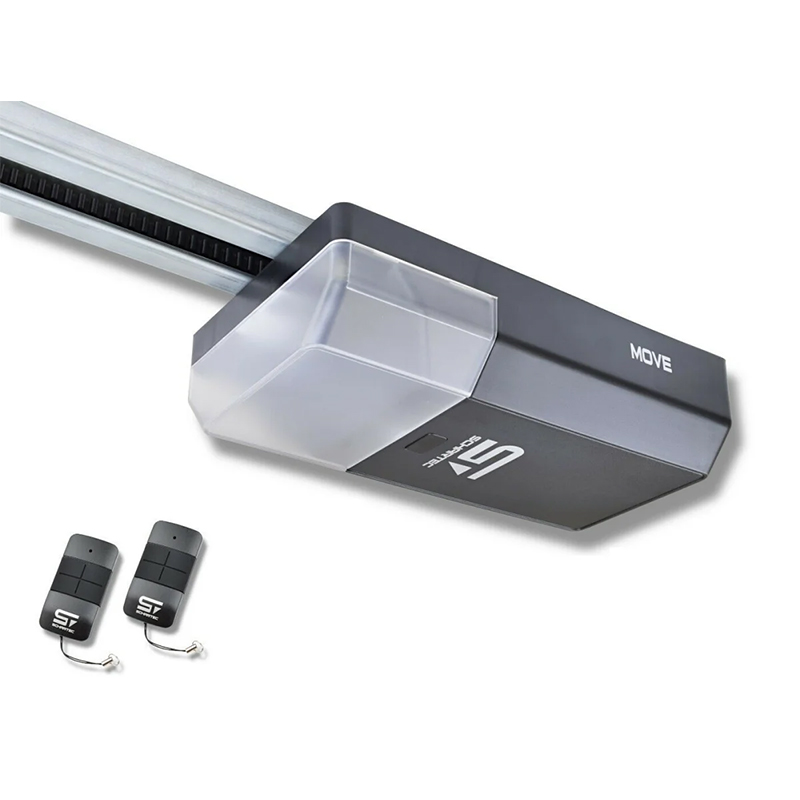

Schartec Move 600 Speed Series 3 garage door opener with K-rail
The turbocharged gate drive!
New to Series 3:
- Adjustable ventilation setting - previously only possible with the Prime model
- Stronger timing belt with 6 steel tendons - other manufacturers often only use 4-5 steel tendons.
- Hidden display – resulting in an elegant design and preventing unauthorized adjustment of the drive.
- Handheld transmitter with soft-touch keypad and improved pressure point - preventing accidental activation of the transmitter when in a pocket.
- Reinforced ceiling hangers (folded) - resulting in a more stable suspension of the rail.
- TÜV GS certified - highest level of safety and quality
- Ready-to-install complete set for garage doors up to 10 m² door area.
Advantages:
- Turbo speed - up to 200 mm/second
- TÜV GS certified safety and quality
- Energy-efficient LED lighting
- Soft start and soft stop (protects the transmission)
- Adjustable ventilation setting (ideal for insulated sectional doors)
- Increased safety thanks to automatic obstacle detection
- Automatic feed adjustable (in conjunction with light barrier)
- Maintenance-free timing belt with 6 steel tendons (competitors usually only use 4-5 steel tendons)
- Increased burglary protection thanks to delay protection
- Radio receiver with rolling code encryption
- Smooth running
- Solid steel base plate
- Folded rail hangers
- Powerful engine
- Hidden Display (display not accessible from the outside)
- Transformer with temperature detection
- Electronic limit switch setting
- Handheld transmitter with soft-touch keypad and improved pressure point
- Easy assembly and programming
- Large display for programming (most drives in this price range usually do not have a display)
- Extremely durable motor that is also used by other well-known manufacturers (has passed endurance tests up to 20,000 gate cycles)
- 3-year manufacturer's warranty (see warranty conditions in the manual)
Connection options:
- Light barrier
- Warning light
- Push button
- Wicket door contact
- Select the drive rail to match the gate height as shown in the table:
Side hinged Sectional door
Up to 2400 mm height K-rail K-rail
Up to 2600 mm height K-rail M-rail
Up to 2750 mm height M-rail M-rail
Up to 2950 mm height M-rail L-rail
Up to 3250 mm height L-rail L-rail
Up to 3450 mm height L-rail
Important note: This garage door opener is intended exclusively for impulse operation of spring-balanced sectional and up-and-over garage doors in private/non-commercial settings. Door systems located in public areas and equipped only with a safety device, such as force limiting, may only be operated under supervision. The garage door opener is designed for operation in dry rooms.
TECHNICAL DATA - MOVE 600 Speed
Power supply. 220-240, 50-60 V, Hz
Maximum tensile force 600 N
Max. gate area. 10 m²
Max. weight 80 kg
Max. door height sectional door 2400 mm (K-rail)
Max. gate height swing gate. 2600 mm (K-rail)
Max. gate width 5000 mm
Max. gate width wooden swing gates. 3500 mm
Drive rail Belt
Opening speed 200 mm/sec
Power consumption 200 W
Power consumption in standby mode approx. 2.5 W
End position setting Electrically
Radio frequency 433.92 MHz
Coding Rolling Code
Storage capacity 20 different codes
Connection warning light Included
Operating temperature -20°C to +40°C
Protection class 20 IP
Total length of drive unit with K-rail 3155 mm
Total length of drive unit with M-rail 3655 mm
Total length of drive unit with L-rail 4155 mm
