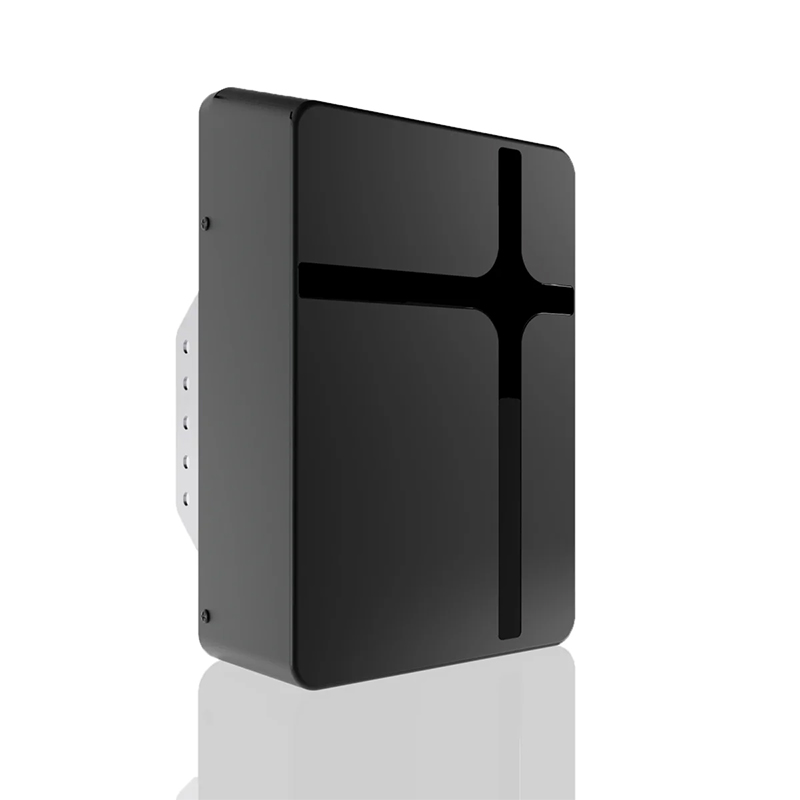

Schartec Prime 1500n Integrated Wifi
Ready-to-install complete set for garage doors up to 18 m² door area.
New on Prime Series 2:
- Integrated Wi-Fi in the drive unit – no external gateway required like with other manufacturers. The drive unit connects to your smartphone in just a few minutes.
- Extremely powerful with 1500 N - probably the strongest garage door opener on the German market
- SCHARTEC Smart App – can also control other smart home devices (Prerequisite: Tuya-compatible)
- Adjustable electronic key lock – protects against accidental operation of the remote controls
- TÜV GS certified – highest level of safety and quality
In stock
Description / Schartec Prime 1500n Integrated Wifi
Schartec Prime 1500 Series 2 Smartphone Garage Door Opener
Ready-to-install complete set for garage doors up to 18 m² door area.
New on Prime Series 2:
- Integrated Wi-Fi in the drive unit – no external gateway required like with other manufacturers. The drive unit connects to your smartphone in just a few minutes.
- Extremely powerful with 1500 N - probably the strongest garage door opener on the German market
- SCHARTEC Smart App – can also control other smart home devices (Prerequisite: Tuya-compatible)
- Adjustable electronic key lock – protects against accidental operation of the remote controls
- TÜV GS certified – highest level of safety and quality
Advantages:
- Wi-Fi integrated into the drive
- Download the free SCHARTEC Smart App for more than just garage door openers.
- Controllable with Google Assistant
- Key lock adjustable for hand-held transmitter
- Extremely powerful with 1500 N
- TÜV GS certified safety and quality
- Heavy-duty timing belt with 6 steel tendons – other manufacturers often only use 4–5 steel tendons.
- Hidden display – ensures an elegant design and prevents unauthorized adjustment of the drive.
- Handheld transmitter with soft-touch keypad and improved pressure point – prevents accidental activation of the transmitter in a pocket
- Reinforced ceiling hangers (folded) – more stable suspension of the rail
- Energy-efficient LED lighting
- Soft start and soft stop (protects the transmission)
- Adjustable ventilation setting (ideal for insulated sectional doors)
- Increased safety thanks to automatic obstacle detection
- Automatic feed adjustable (in conjunction with light barrier)
- Increased burglary protection thanks to delay protection
- Radio receiver with rolling code encryption
- Smooth running
- Solid steel base plate
- Folded rail hangers
- Powerful engine
- Hidden Display (not accessible from the outside)
- Transformer with temperature detection
- Electronic limit switch setting
- Handheld transmitter with soft-touch keypad and improved pressure point
- Easy assembly and programming
- Large display for programming (most drives in this price range usually do not have a display)
- Extremely durable motor, also used by other well-known manufacturers (has passed endurance tests up to 20,000 gate cycles)
- 3-year manufacturer's warranty (see warranty conditions in the manual)
Connection options:
- Light Barrier
- Warning Light
- Push Button/Key Switch
- Wicket Door Contact
ATTENTION! Electric gates may only be operated if they are clearly visible. If you wish to operate the Schartec Prime Wi-Fi garage door opener with your smartphone without having the garage door in sight, then the PLS1 light barrier is required as a secondary safety device.
IMPORTANT! The Schartec Prime can be controlled with the Schartec Smart App and Google Assistant, but not via Amazon Alexa (Echo). This option is only available when integrating third-party devices into the Schartec Smart App that are also compatible with Amazon Alexa.
Select the drive rail to match the gate height as shown in the table:
Side Hinged Sectional door
Up to 2400 mm height K-rail K-rail
Up to 2600 mm height K-rail M-rail
Up to 2750 mm height M-rail M-rail
Up to 2950 mm height M-rail L-rail
Up to 3250 mm height L-rail L-rail
Up to 3450 mm height L-rail -
Important notes:
For large and heavy garage doors (e.g., wooden doors and large sectional doors), a second rail suspension is recommended for increased stability. The metal rails on the motor can be used in conjunction with an additional ceiling bracket (Schartec part number ST104039).
The garage door opener is intended exclusively for impulse operation of spring-balanced sectional and up-and-over doors in private/non-commercial settings. It is not suitable for garage door systems located in public areas or those equipped with a safety device.
TECHNICAL DATA
Network connection 220-240 V, 50-60 Hz
Maximum tensile force 1500 N
Max. gate area 18 m²
Max. goal weight 180 kg
Goal height in combination with:
K-rail max. 2400 mm
M-rail max. 2750 mm
L-rail max. 3250 mm
Max. gate width 6000 mm
Max. gate width wooden swing gates 5000 mm
Opening speed 120 mm/sec
Power consumption 300 W
Power consumption in standby mode approx. 5 W
End position setting Electrically
Radio Frequency 433.92 MHz
Coding Rolling Code
Storage capacity 20 different codes
Operating temperature -20°C to +40°C
Protection class 20 IP
Total length of drive unit with K-rail. 3205 mm
Total length of drive unit with M-rail 3705 mm
Total length of drive unit with L-rail 4205 mm
CONTENTS:
- Garage door opener Prime 1500 Series 2
- 1-piece 3m K-Boom with toothed belt
- 2 pcs. T11 hand-held transmitter (black)
- Mounting material
- Instructions
More Information
| Manufacturer | Schartec |
|---|
