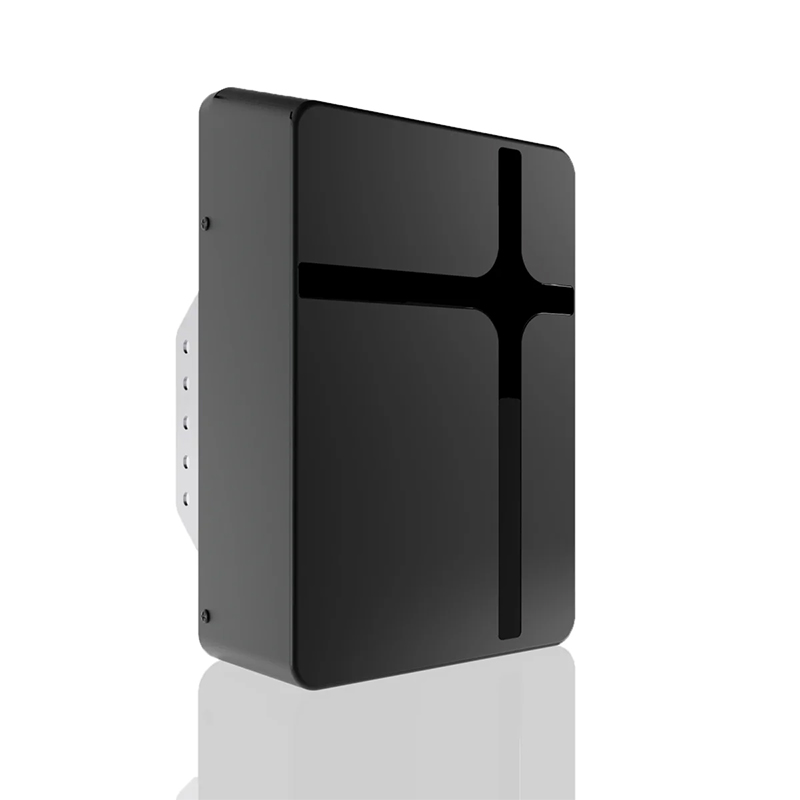

Schartec Prime 600n Integrated Wifi
New on Prime Series 2:
- Integrated Wi-Fi in the drive unit – no external gateway required like with other manufacturers. Connect the drive unit to your smartphone in just a few minutes.
- Extremely fast opening speed - Opens at up to 240 mm/second, even faster than the Move Speed series
- SCHARTEC Smart App (comprehensive app ) - can also control other smart home devices (requires Tuya compatibility)
- Adjustable electronic key lock - Protects against accidental operation of the remote controls
- TÜV GS certified - highest level of safety and quality
- Ready-to-install complete set for garage doors up to 10 m² door area.
In stock
Description / Schartec Prime 600n Integrated Wifi
Schartec Prime 600 Series 2 Smartphone Garage Door Opener
New on Prime Series 2:
- Integrated Wi-Fi in the drive unit – no external gateway required like with other manufacturers. Connect the drive unit to your smartphone in just a few minutes.
- Extremely fast opening speed - Opens at up to 240 mm/second, even faster than the Move Speed series
- SCHARTEC Smart App (comprehensive app ) - can also control other smart home devices (requires Tuya compatibility)
- Adjustable electronic key lock - Protects against accidental operation of the remote controls
- TÜV GS certified - highest level of safety and quality
- Ready-to-install complete set for garage doors up to 10 m² door area.
Advantage:
- Wi-Fi integrated in the drive
- Free SCHARTEC Smart APP for more than just garage door openers available for download.
- Controllable with Google Assistant
- Key lock adjustable for hand-held transmitter
- Extremely fast thanks to a running speed of up to 240 mm/second
- TÜV GS certified safety and quality
- Heavy-duty timing belt with 6 steel tendons - other manufacturers often only use 4-5 steel tendons.
- Hidden display – resulting in an elegant design and preventing unauthorized adjustment of the drive.
- Handheld transmitter with soft-touch keypad and improved pressure point - preventing accidental activation of the transmitter when in a pocket.
- Reinforced ceiling hangers (folded) - resulting in a more stable suspension of the rail.
- Energy-efficient LED lighting
- Soft start and soft stop (protects the transmission)
- Adjustable ventilation setting (ideal for insulated sectional doors)
- Increased safety thanks to automatic obstacle detection
- Automatic feed adjustable (in conjunction with light barrier)
- Increased burglary protection thanks to delay protection
- Radio receiver with rolling code encryption
- Smooth running
- Solid steel base plate
- Folded rail hangers
- Powerful engine
- Hidden Display (display not accessible from the outside)
- Transformer with temperature detection
- Electronic limit switch setting
- Handheld transmitter with soft-touch keypad and improved pressure point
- Easy assembly and programming
- Large display for programming (most drives in this price range usually do not have a display)
- Extremely durable motor that is also used by other well-known manufacturers (has passed endurance tests up to 20,000 gate cycles)
- 3-year manufacturer's warranty (see warranty conditions in the manual)
Connection options:
- Light Barrier
- Warning Light
- Push Button/Key Switch
- Wicket Door Contact
ATTENTION! Electric gates may only be operated if they are clearly visible. If you wish to operate the Schartec Prime Wi-Fi garage door opener with your smartphone without having the garage door in sight, then the PLS1 light barrier is required as a secondary safety device.
IMPORTANT! The Schartec Prime can be controlled with the Schartec Smart App and Google Assistant, but not via Amazon Alexa (Echo). This option is only available when integrating third-party devices into the Schartec Smart App that are also compatible with Amazon Alexa.
IMPORTANT! When operating two SCHARTEC Prime garage door openers, the 4-channel remote control functions as follows: Button 1 = Door 1 / Button 2 = Door 2 / Button 3 = Unlock keypad lock / Button 4 = Ventilation position (both doors). Controlling more than two SCHARTEC garage door openers with only one remote control is not possible due to the keypad lock and ventilation position.
Select the drive rail to match the gate height as shown in the table:
Side Hinged Sectional door
Up to 2400 mm height K-rail K-rail
Up to 2600 mm height K-rail M-rail
Up to 2750 mm height M-rail M-rail
Up to 2950 mm height M-rail L-rail
Up to 3250 mm height L-rail L-rail
Up to 3450 mm height L-rail -
Important notes:
For large and heavy garage doors (e.g., wooden doors and large sectional doors), a second rail suspension is recommended for increased stability. The metal rails on the motor can be used in conjunction with an additional ceiling bracket (Schartec part number ST104039).
The garage door opener is intended exclusively for impulse operation of spring-balanced sectional and up-and-over doors in private/non-commercial settings. It is not suitable for garage door systems located in public areas or those equipped with a safety device.
TECHNICAL DATA
Power Supply 220-240 V, 50-60 Hz
Maximum tensile force 600 N
Max. gate area 10 m²
Max. weight 100 kg
Max. door height sectional door 2400 mm (K-rail)
Max. gate height swing gate 2600 mm (K-rail)
Max. gate width 5000 mm
Max. gate width wooden swing gates 3500 mm
Drive Rail Belt
Opening speed 240 mm/sec
Power Consumption 200 W
End Position Setting Electrically
Radio Frequency 433.92 MHz
Coding Rolling Code
Storage Capacity 20 different codes
Connection warning light Included
Operating temperature -20°C to +40°C
Protection Class 20 IP
Total length of drive unit with K-rail 3205 mm
Total length of drive unit with M-rail 3705 mm
Total length of drive unit with L-rail 4205 mm
Contents:
- Garage door opener Prime 600 Series 2
- 1-piece 3m K-Boom with toothed belt
- 2 pcs. T11 hand-held transmitter (black)
- Mounting material
- Instructions
More Information
| Manufacturer | Schartec |
|---|
