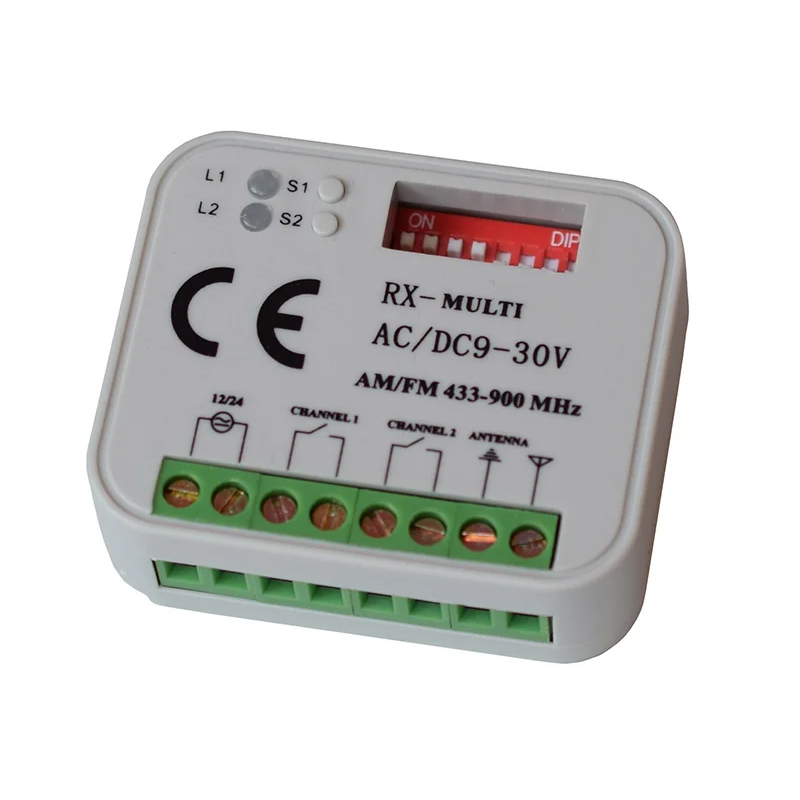

Schartec RX-Multi radio receiver 433 - 868 MHz
The Schartec RX-Multi 2-channel radio receiver is compatible with most common hand-held transmitters from manufacturers such as Sommer, Hörmann, Marantec, Nice, Faac, Liftmaster, etc. It can receive frequencies of 433 MHz and 868 MHz and is compatible with rolling and fixed codes. A true all-rounder. Thanks to its two channels, you can control up to two different gate operators. Its compact design allows the radio receiver to be installed almost anywhere.
In stock
Description / Schartec RX-Multi radio receiver 433 - 868 MHz
The Schartec RX-Multi 2-channel radio receiver is compatible with most common hand-held transmitters from manufacturers such as Sommer, Hörmann, Marantec, Nice, Faac, Liftmaster, etc. It can receive frequencies of 433 MHz and 868 MHz and is compatible with rolling and fixed codes. A true all-rounder. Thanks to its two channels, you can control up to two different gate operators. Its compact design allows the radio receiver to be installed almost anywhere.
Compatible with:
- Sommer 868 MHz (Model: 4020/ 4025/ 4026)
- Hörmann 868 MHz (Model: HSM 4/ HS 4/ HSE 2/ HSP 4/ HSZ 1+2/ HSD)
- Marantec 433 MHz and 868 MHz (Model: Digital 302/ 304/ 313/ 321/ 323)
- Nice 433 MHz (Model: FLORS)
- FAAC 433 MHz and 868 MHz (Model: SLH
- Liftmaster 868 MHz
- DITEC 433 MHz
- V2 433 MHz
ATTENTION! Not compatible with Hörmann 868 MHz BS (Bisecur), Marantec 868 MHz Bi-Linked or Sommer 868 MHz SOMloq2 hand-held transmitters. Compatible only with the transmitters listed above.
ADVANTAGES
- Control up to 2 gate drives
- Easy installation
- Very compact
TECHNICAL DATA
Frequency 433 - 868 MHz (rolling code/fixed code)
Max. handheld transmitter 250 pieces per channel
Channels 2
Power supply 12-24 V AC/DC (power supply not included)
Contents
- 1 x Schartec radio receiver RX-Multi
- 1 x antenna approx. 19 cm long
- 1 x instruction manual (German/English/Spanish)
More Information
| Manufacturer | Schartec |
|---|
