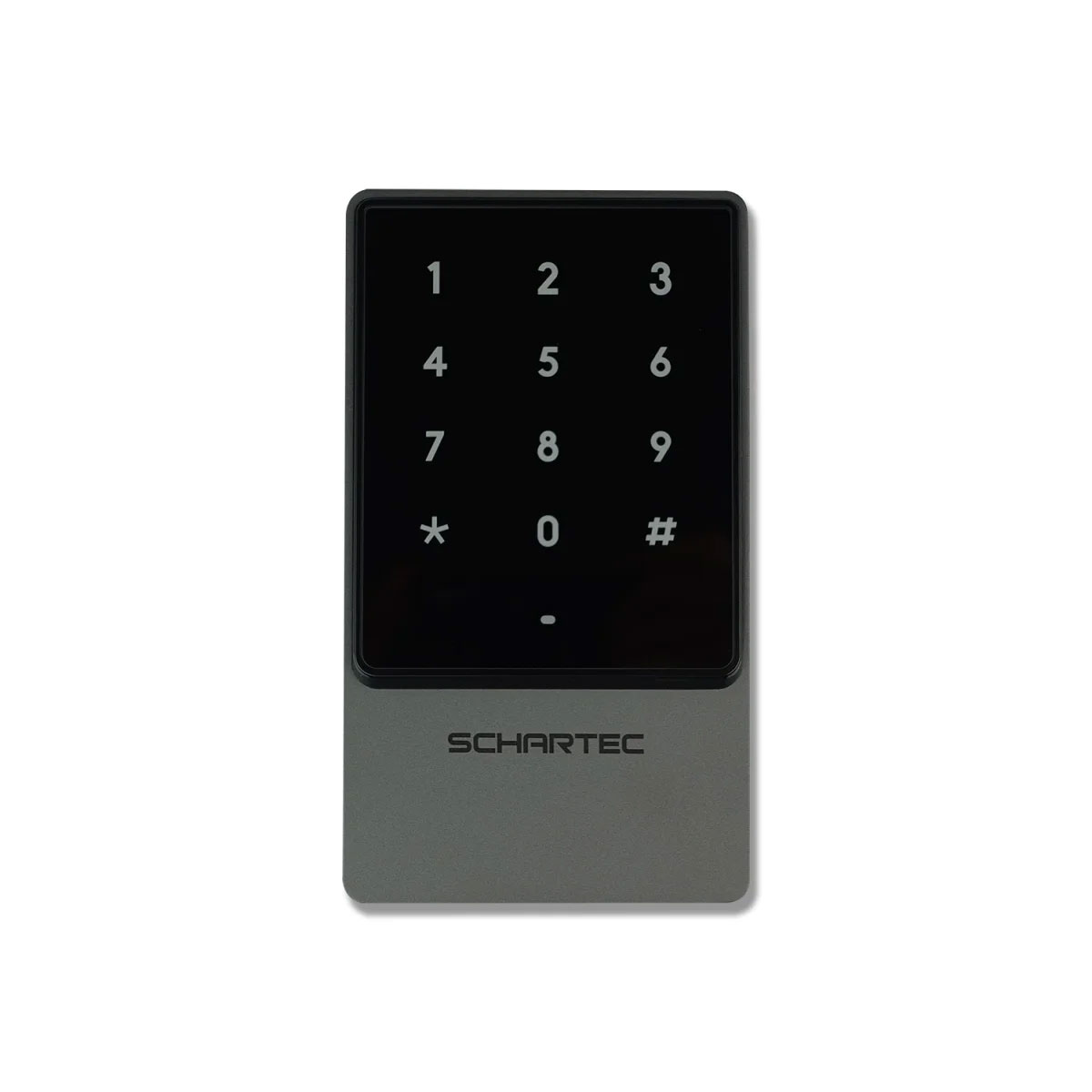

Schartec Sky Wired External Keypad
The Sky keypad from SCHARTEC features 1 channel and can therefore control one drive. It is universally applicable and works with all electric gate operators and doors with an electric opener, regardless of the manufacturer. You can easily use the code switch for your driveway gate, garage door, or front door. For this, you only need a 12-24 V DC power supply (only use power supplies with 12-24 V DC, AC is not possible), which most electric gate operators already provide. The keypad is wired, so there is no need to change batteries, as is the case with wireless keypads.
In stock
Description / Schartec Sky Wired External Keypad
The Sky keypad from SCHARTEC features 1 channel and can therefore control one drive. It is universally applicable and works with all electric gate operators and doors with an electric opener, regardless of the manufacturer. You can easily use the code switch for your driveway gate, garage door, or front door. For this, you only need a 12-24 V DC power supply (only use power supplies with 12-24 V DC, AC is not possible), which most electric gate operators already provide. The keypad is wired, so there is no need to change batteries, as is the case with wireless keypads.
The premium keypad impresses with its modern design, high-quality workmanship, and best materials. It is made from a solid aluminium-zinc housing, making it very well protected against weather or damage. Thanks to the reinforced glass keypad, wear on the number keys is prevented. The keypad is operated via touch function, simplifying the input of numerical codes. The keypad is also very easy to use in the rain. With an IP 68 protection class, the keypad is also suitable for outdoor use. The keypad lighting can be activated or deactivated as desired.
The SCHARTEC Sky keypad can also be operated with RFID transponder chips, which are available as accessories.
The SCHARTEC Sky keypad can register up to 2000 users, who can then easily open the gate or door using a numerical code. Additionally, so-called transponders (available separately) can be programmed to open the garage door or door without entering the numerical code. An administrator password also protects against adding or deleting codes or transponders by unauthorised persons. When using the SCHARTEC Sky on a door with an electric opener, the opening time (hold time) can be set in seconds.
Compatible with:
- Schartec Prime
- Schartec Move
- Schartec Porte
- Schartec Jet
- Third-party products with keypad connection options
TECHNICAL DATA
- Power supply: 12-24 V DC
- Standby current: =45 mA
- Channels: 1
- Reading distance for EM and HID cards: 5 cm
- Reading distance for Mifare and CPU cards: 2 cm
- Antenna frequency of the card reader: 125 KHz & 13.56 MHz
- Dimensions: 145 x 83 x 26 mm
- Protection class: IP 68
- Operating temperature: -20 to +60°C
- Humidity of the operating environment: 0-95% (non-condensing)
- Article number: ST161001
- Model: Sky
BOX CONTENTS
- 1 pc. Codetaster Sky
- 4 pcs. screws 6 x 30 mm
- 4 pcs. dowels KA4 x 25 mm
- 1 pc. drilling template
- 1 pc. instructions
