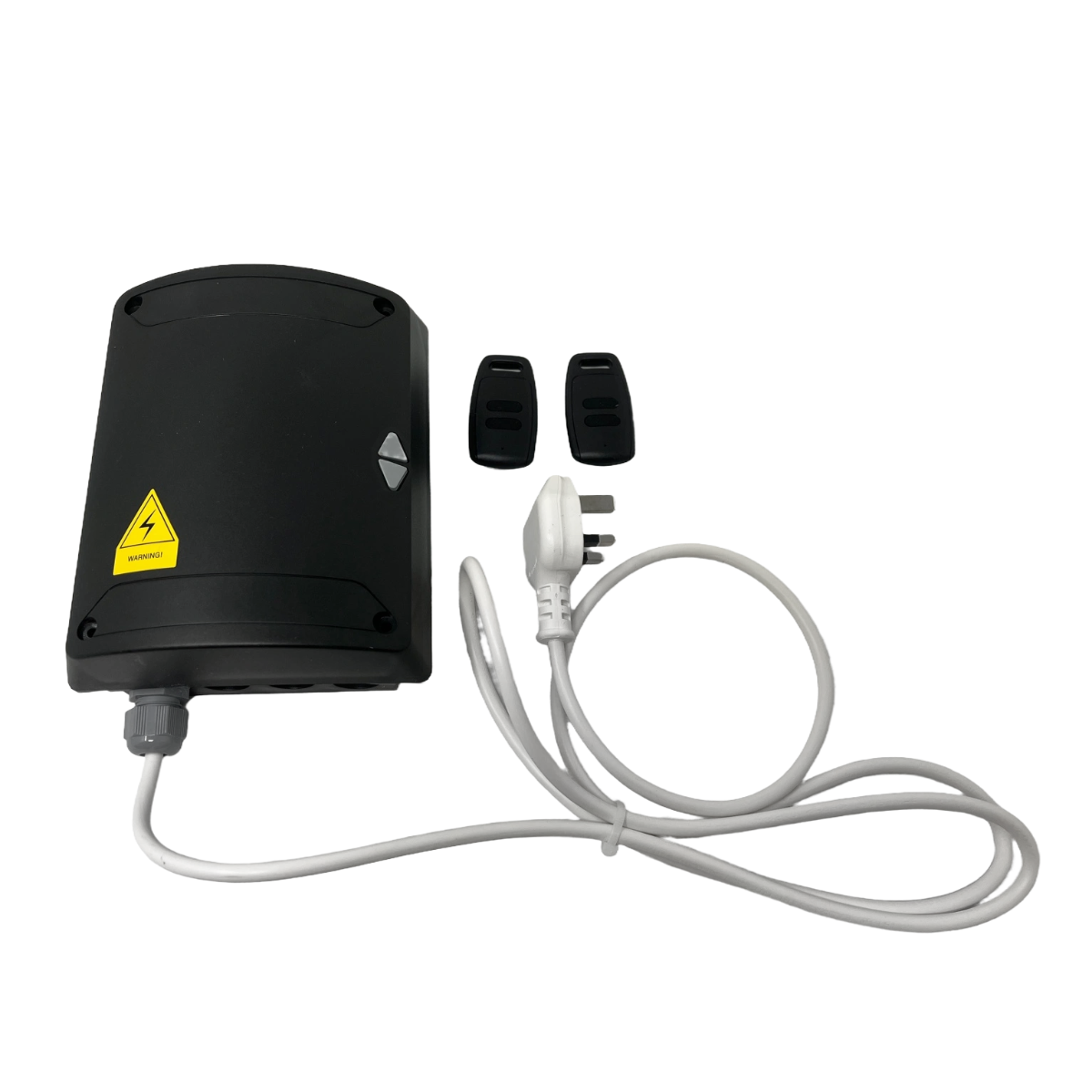

The Simple panel is at the forefront of a new generation of controls within the 868Mhz range.

It’s in the name, The Simple panel is a basic controller for roller garage doors, with selectable impulse/deadman control and auto time close function.

Safety edge deactivation allows users to ‘deactivate’ the safety edge up to 50mm from the floor ensuring full closure each time even on uneven floors.

With the option of bi-directional controls, the panel displays the positional status of the garage door. A red LED would indicate ‘door open’ status and a blue ‘closed’. Bi-directional transmitters would be required for this function.

This unit wil take a wired safety edge only

Used with our garage door Tubular Motor range

Handsets

- TVTXP868L02 - Smooth 2 Channel Transmitter - White
- TVTXP868L04 - Smooth 4 Channel Transmitter - White
- TVMIO868P02 - MIO 2 Channel Transmitter - Black
- TVMIO868P04 - MIO 4 Channel Transmitter - Black
- TVMIO868A02 - MIO 2 Channel Transmitter - Black /Aluminium
- TVMIO868A04 - MIO 4 Channel Transmitter - Black /Aluminium
- TVTXP868A02 - 2 Channel Transmitter - Grey
- TVTXE868A02 - I-Like 2 Channel Transmitter Black
- TVTXE868A04 - I-Like 4 Channel Transmitter Black
- TVTXQ868N03 - 3 Channel Hand Held Transmitter plus - black
- TVTXP868R013 - Conti 4 Channel Transmitter - Black/ Aluminium

Wireless Keypads/ Wall Switches

- TVTXK868A04 - Battery Powered Radio Keypad - Black
- TVTXK868B04 - Battery Powered Radio Keypad - White
- TVTXI868BB01 - 1 Channel Dynamic Intense Poly Transmitter - White
- TVTXI868BB02 - 2 Channel Dynamic Intense Poly Transmitter - White
- TVTXI868NN02 - 2 Channel Dynamic Intense Poly Transmitter - Black
- TVTXI868BB04 - 4 Channel Dynamic Intense Poly Transmitter - White
- TVTXI868NN04 - 4 Channel Dynamic Intense Poly Transmitter - Black
- TVTXI868BB06 - 2 Channel U/D/S Intense Poly Transmitter - White
- TVTRTXI868BB04 - ASK 4 Channel Wall Transmitter - White
- TVTRTXI868NN04 - ASK 4 Channel Wall Transmitter - White
